Unearth the Past, Protect Archaeological Sites and Enhance Heritage Preservation with GPR

Uncover, Explore, and Protect with Utility Detection and Mapping Technology

Ground Penetrating Radar (GPR) technology provides a non-destructive, accurate, and efficient way to investigate below ground, enabling archaeologists and preservationists to understand sites and artefacts for future generations. By providing a glimpse of what's buried underneath or hidden within structures, GPR supports informed decisions about managing and protecting these important sites.

You can leverage GPR to support archaeological work or preservation projects to identify and map buried relics or hidden structures in a non-invasive way. Diversify your services while protecting history and enhancing heritage exploration by adopting our GPR solutions.


Best Utility Detection and Mapping Tools for Archaeology and Preservation




Unleash an unparalleled level of subsurface investigation

Chaser XR is a powerful all-in-one GPR solution that sets a new standard in surveying, combining the capabilities of multiple systems into one versatile tool, thus offering unprecedented flexibility and cost-effectiveness.

  • Lightweight (< 5 kg) and compact design with three different product configurations.
  • Leverage Equalized scrambled Technology (EsT) for superior noise rejection, capturing lower and higher frequencies, ensuring an extended depth range and ultra-high resolution.
  • Diverse applications, from environmental assessment to tunnel inspection, archaeological studies, examination of manmade structures, and ice and snow investigations.

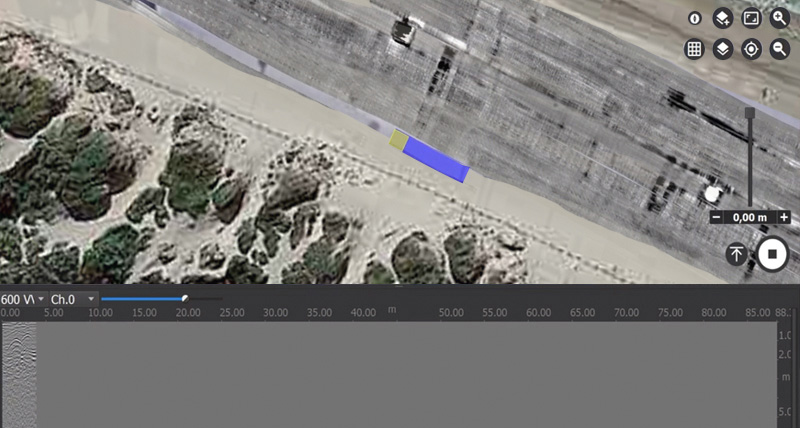

Faster data acquisition and improved data management with uMap field software

uMap is user-friendly on-field software designed for efficient data collection and management. It has an easy-to-use interface that supports cloud data sharing and remote diagnostics.

  • Automatic calibration ensures an easy and quick start-up.
  • Visualisation and storage of radar data.
  • Real-time visualisation of radar tomography (time slices).
  • Connectivity with NMEA positioning devices.
  • Seamless data export, storage, sharing, and access on major cloud service providers.

Elevate the way you analyse GPR data with IQMaps

IQMaps is a post-processing software application for advanced GPR data analysis, which provides fast interfacing between the user and the GPR data.

  • Step-by-step guide for the best and the quickest data analysis for extensive utility mapping of large projects.
  • Real-time processing, advanced target management, and 3D visualisation.
  • Anomaly detection of, e.g. sinkholes, substations, buried objects.
  • Export, store, share and access data on major cloud service providers for a streamlined workflow in utility detection.
  • Increased productivity and ease of use up to 30,000 sqm in a working day.

Maximum depth, high resolution and versatile design for superior productivity

Stream DP is a multichannel GPR array solution for real-time 3D mapping of underground utilities. Its unique Equalized scrambled Technology (EsT) offers a depth of utility detection unmatched in the marketplace.

  • Massive array of 30 channels in double polarisation for an accurate 3D reconstruction ideal for larger projects with wide scans of 82.5cm and max acquisition speed 14 km/h.
  • Best noise rejection captures both the lower and higher frequencies for an extended depth range and an ultra-high resolution thanks to EsT.
  • Multi-environment configuration for asphalt (pivoting wheels) or rugged terrain (terrain wheel)
  • Designed for easy transportation, reduced assembly time, and efficient one-person operation.

Faster data acquisition and improved data management with uMap field software

uMap is user-friendly field software designed for efficient data collection and management. It has an easy-to-use interface that supports cloud data sharing and remote diagnostics.

  • Automatic calibration ensures an easy and quick start-up.
  • Visualisation and storage of radar data.
  • Real-time visualisation of radar tomography (time slices).
  • Connectivity with NMEA positioning devices.
  • Seamless data export, storage, sharing, and access on major cloud service providers.

Elevate the way you analyse GPR data with IQMaps

IQMaps is a post-processing software application for advanced GPR data analysis, which provides fast interfacing between the user and the GPR data.

  • Step-by-step guide for the best and the quickest data analysis for extensive utility mapping of large projects.
  • Real-time processing, advanced target management, and 3D visualisation.
  • Anomaly detection of, e.g. sinkholes, substations, buried objects.
  • Export, store, share and access data on major cloud service providers for a streamlined workflow in utility detection.
  • Increased productivity and ease of use up to 30,000 sqm in a working day.

Stream T is a unique contactless, multichannel, multi-frequency and double-polarised lightweight GPR system for tunnel inspection.

Stream T is a unique contactless, multichannel, multi-frequency and double-polarised lightweight GPR system for tunnel inspection.

  • Contactless data collection up to 20 cm from the tunnel surface
  • Investigate the state of conservation and the presence of cracks and voids.
  • Data processing and mapping anomalies in 3D view with post-processing GRED HD 3D CAD software..

Revealing the Subterranean Harmony for Heritage and Preservation Mapping

Stream X is a vehicle towed GPR solution ideal for mapping archaeological sites, detecting underground structures, identifying cavities, detecting underground tanks, and clearing areas before excavation.

  • Three different array configurations from 16 to 48 channels.
  • Best penetration with 16 channel 200 MHz array and maximise resolution with a 24–48 channel 600 MHz array.
  • Covers a 1.80m wide swath with a single pass with an eight scans/m scan interval, and a maximum acquisition speed of 36 km/h.
  • Up to 1 hectare/hour and a dedicated post-processing platform.
  • Fast and accurate survey even in rough terrain and able to detect anomalies in the soil.

Elevate the way you analyse GPR data with IQMaps

IQMaps is a post-processing software application for advanced GPR data analysis, which provides fast interfacing between the user and the GPR data.

  • Step-by-step guide for the best and the quickest data analysis for extensive utility mapping of large projects.
  • Real-time processing, advanced target management, and 3D visualisation.
  • Anomaly detection of, e.g. sinkholes, substations, buried objects.
  • Export, store, share and access data on major Cloud service providers for a streamlined workflow in utility detection.
  • Increased productivity and ease of use up to 30,000 sqm in a working day.


Descubra cómo nuestras soluciones de auscultación pueden adaptarse al entorno de su proyecto.

Exploring Subterranean Landscapes with Stream DP

Learn how Subsurface Mapping Solutions used Stream DP to map the burrows of the critically endangered Northern Hairy-Nosed Wombat. Explore the intersection of GPR tech innovation and ecological preservation.
Learn how Subsurface Mapping Solutions used Stream DP to map the burrows of the critically endangered Northern Hairy-Nosed Wombat. Explore the intersection of GPR tech innovation and ecological preservation.

Contactless GPR Tomography on Walls Supporting Giotto's Mural Paintings

Read how the innovative use of contactless GPR helped in the non-invasive study of the historic walls hosting Giotto's mural paintings in the Santa Croce Basilica, Florence, Italy.
Read how the innovative use of contactless GPR helped in the non-invasive study of the historic walls hosting Giotto's mural paintings in the Santa Croce Basilica, Florence, Italy.

Going Below to Protect the Above

Discover how Technics, a UK geospatial consultancy, used GPR to map ancient archaeological and utility features under the historic Lincoln Cathedral, securing its safety during upcoming renovations.
Discover how Technics, a UK geospatial consultancy, used GPR to map ancient archaeological and utility features under the historic Lincoln Cathedral, securing its safety during upcoming renovations.
